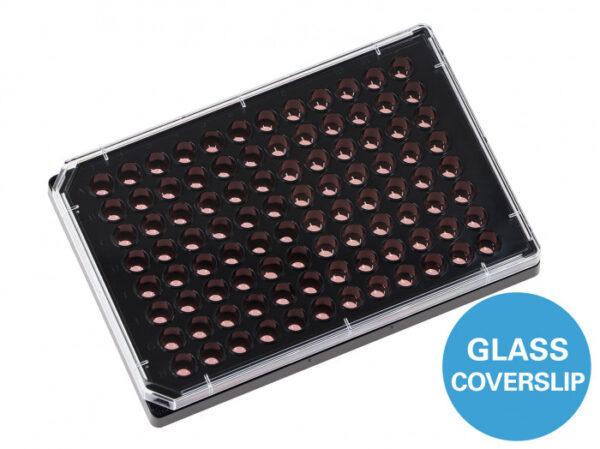

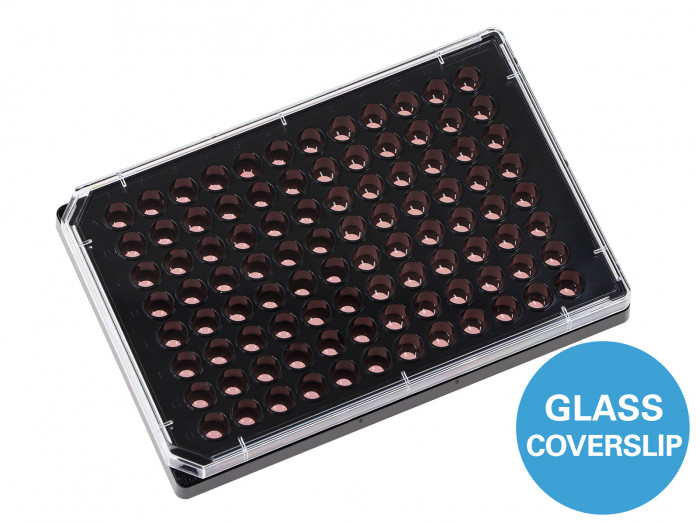

µ-Plate 96 Well Round Glass Bottom
Bulk Packs
A black 96 well plate with round wells and a #1.5H glass coverslip bottom for high-throughput screening using TIRF and super-resolution microscopy
- A microplate ideal for high-end cell microscopy due to black walls and a thin glass coverslip bottom
- Brilliant cell imaging thanks to the low thickness variability of the #1.5H glass coverslip and the excellent inner well and whole plate flatness
- Low well-to-well crosstalk in fluorescence microscopy
Applications
- Cultivation, high throughput screening (HTS), and high-resolution microscopy of cells
- Widefield fluorescence imaging and confocal microscopy of living and fixed cells
- Compound screenings (toxicology)
- Large-scale transfection experiments
- Live cell imaging, also suited for extended periods
- Total internal reflection fluorescence (TIRF) and single molecule applications
- Super-resolution microscopy (STED, SIM, (F)PALM, (d)STORM) and fluorescence correlation spectroscopy (FCS)
- Immunofluorescence staining
Technical Features
- Compatible with robotics and plate readers due to an ANSI/SLAS (SBS) standard format
- 96 round wells with standard numbering (letters A–H and numbers 1–12)
- Suitable for fluorescence scanners
- Bottom made from D 263 M Schott glass with a thickness of 170 µm +/- 5 µm
- May require coating to promote cell attachment
- No autofluorescence
- Excellent inner well flatness and whole plate flatness
- Compatible with staining and fixation solvents
- Sterile with single packaging
- Also available with square wells: µ-Plate 96 Well Square Glass Bottom
- Also available as µ-Plate 96 Well Round or µ-Plate 96 Well Square with a #1.5 ibidi Polymer Coverslip Bottom for optimized cell adhesion—for everyday use with diverse application possibilities
The Principle of the µ-Plate 96 Well Round Glass Bottom
The Coverslip Bottom
The µ-Plate 96 Well Round Glass Bottom comes with a high precision D263 M Schott glass, No 1.5H (170 +/– 5 µm) Glass Coverslip bottom. This bottom is ideally suitable for high-resolution microscopy and special microscopic applications like TIRF or super-resolution.
Geometry of the µ-Plate 96 Well Round Glass Bottom
| Length / width | 127.8 / 85.5 mm |
| Height with / without lid | 16.6 / 14.4 mm |
| Well-to-well distance | 9.0 mm |
| Well clearance | 0.73 mm |
| Single well diameter | 6.2 mm |
| Single well depth | 12.9 mm |
| Volume per well | 200 µl |
| Growth area per well | 0.3 cm2 |
| Coating area per well using 200 µl | 1.61 cm2 |
| Bottom: Glass Coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm | |
Instructions
Variant
Pack/Size
Price
Qty
µ-Plate 96 Well Round Glass Bottom, Bulk Pack 90: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
90 / Pack
£3,321.03 ex. VAT
µ-Plate 96 Well Round Glass Bottom: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
15 / Pack
£651.18 ex. VAT
