µ-Slide 4 Well Ph+
Bulk Packs
- Excellent phase contrast over the entire well – no meniscus
- All-in-one chamber slide used for cell culture and microscopy
- Observation of the sample through the coverslip-like bottom using high resolution microscopy
- Fast and easy immunofluorescence, with no coverslips and no leakage

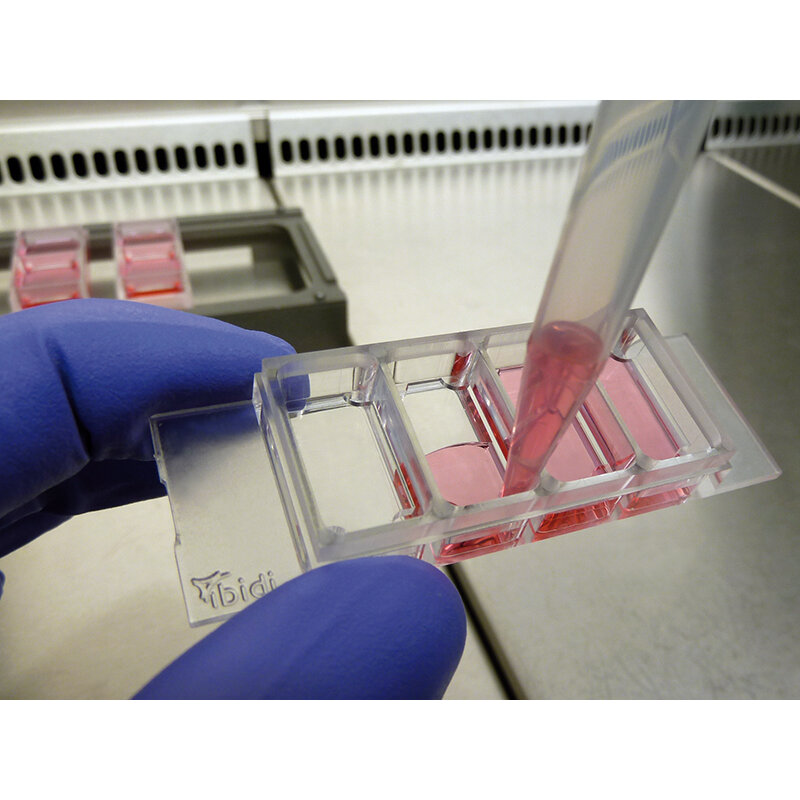

An open µ-Slide (chambered coverslip) with 4 wells and a special intermediate plate for excellent phase contrast and high-end fluorescence microscopy
- Excellent phase contrast over the entire well – no meniscus
- All-in-one chamber slide used for cell culture and microscopy
- Observation of the sample through the coverslip-like bottom using high resolution microscopy
- Fast and easy immunofluorescence, with no coverslips and no leakage
Applications
- Cultivation and microscopy of cell cultures
- Transfection assays
- Fluorescence microscopy of both living and fixed cells
- Live cell imaging over extended time periods
Technical Features
- Open µ-Slide with 4 independent wells
- Intermediate plate in each well to avoid meniscus formation
- Easy filling, without air bubbles, through the lateral slot
- Excellent optical quality for high end microscopy
- Ph+ feature for perfect phase contrast—no meniscus formation
- Compatible with staining and fixation
- ibiTreat surface for optimal cell adhesion
- Made of biocompatible plastic material – no glue and no leaking
- Also available with a glass bottom
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Number of wells | 4 |
| Dimensions of wells (w x l x h) | 21.6 x 11.4 x 9.3 mm³ |
| Volume per well | 700 µl |
| Liquid height | 3.0 mm |
| Total height with lid | 10.8 mm |
| Growth area per well | 2.5 cm² |
| Coating area per well | 5.9 cm² |
| Bottom | ibidi Polymer Coverslip |
Variant
Pack/Size
Price
Qty
µ-Slide 4 Well Ph+ ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
15 / Pack
£244.40 ex. VAT
µ-Slide 4 Well Ph+ ibiTreat, Bulk Box 120: #1.5 polymer coverslip, tissue culture-treated, sterilized, 8 per tray, 15 trays
120 / Pack
£1,587.13 ex. VAT
µ-Slide 4 Well Ph+ ibiTreat, Bulk Box 90: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
90 / Pack
£1,264.75 ex. VAT
