Ibidi

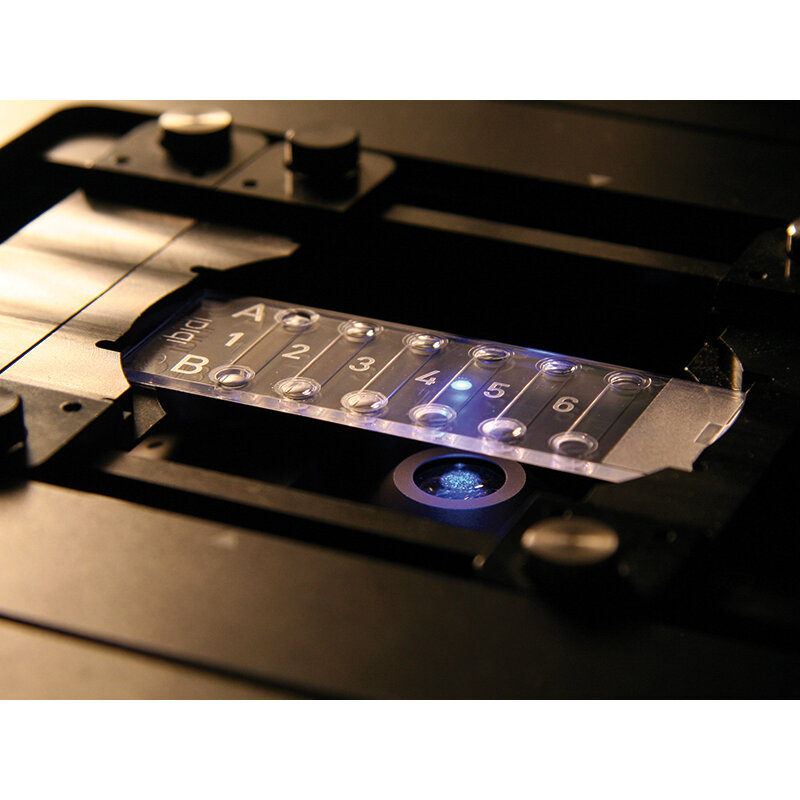

µ-Slide VI – Flat

  • A flat all-in-one chamber for immunofluorescence assays
Open Tooltip - GreenAware
?
GreenAware
Open Tooltip - Sample Available
?
Sample Available

Purchasing Platforms

This item is available to order through the following:

Framework Agreements

This item is available to order through the following:

15
Clear
ibiTreat
£323.53 ex. VAT VAT
Ex. Inc.

Sorry, this product is currently Out of stock

A µ-Slide with 6 parallel channels for short term assays

  • A flat all-in-one chamber for immunofluorescence assays

Applications

  • Immunofluorescence assays using expensive or rare reagents
  • Cell-based short-time assays
  • Parallel screening of antibodies

Technical Features

  • 30 µl test volume, which saves on reagent consumption
  • Compatible with multi-channel pipettes
  • No lid available; to maintain sterility for long-term assays, put the slide into a 10 cm Petri dish
  • Lettered and numbered channels
  • Also suitable with upright microscopes
Outer dimensions (w x l)75.5 x 25.5 mm²
AdaptersNone
Number of channels6
Total height1.5 mm
Channel volume30 µl
Channel height0.4 mm
Channel length17 mm
Channel width3.8 mm
Growth area0.6 cm² per channel
Coating area using 30 µl1.2 cm² per channel
Bottom: ibidi Polymer Coverslip
Instructions
