384 Channel Dispenser Manifold on 4.5 mm Centers and 13 mm Long for Microplates on VP 179A Jig
Dispensing Manifold, for 384 standard well microplates, used with VP 179A Positioning Jig, exact positioning in X, Y and Z directions, dispense volume controlled by syringe or bottletop dispenser

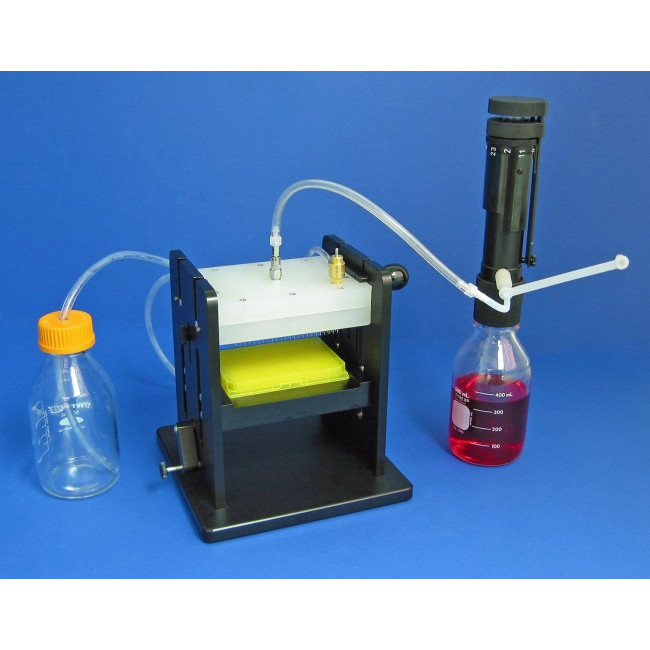

The VP 179BJD 384 well microplate dispenser is illustrated in the photo to the right as it is mounted in a VP 179A Jig. There are several advantages to this design.
- Rapid, fills 384 well plate in less than 3 seconds.
- Simple filling of multiple plates.
- Precision adjustable in X, Y and Z directions
- Can re-position tubes to side of the wells
- Inexpensive, uses disposable syringes.
- Versatile, fill from 5 ul to 120 ul/well.
- Compact, easy to use.
- Uses 23 gauge tubing for anti-drip control.
- No air bubbles in dispensed liquid.
- Accommodates sterile media and reagent buffers (NO ORGANIC SOLVENTS*)
- Quick clean system.
When the line portion of the Quick Disconnect valve is removed the valve closes for dispensing operations.
*This product has not been tested with all types of solutions, for example, those containing or comprised of various detergents and/or organic solvents. If your application includes these types of solutions, preliminary testin
| Tube Gauge | 23 gauge |
|---|---|
| Tube Length | 13 mm |
| Center-To-Center Spacing | 4.5 mm |
| Format | 384 |
| Plate Type | Standard Well |
| # of Channels | 384 channel |
| Manifold Style | Manifold Full Plate |
