96 Channel Aspiration Manifold on 9 mm Centers and 26 mm Long for Microplates

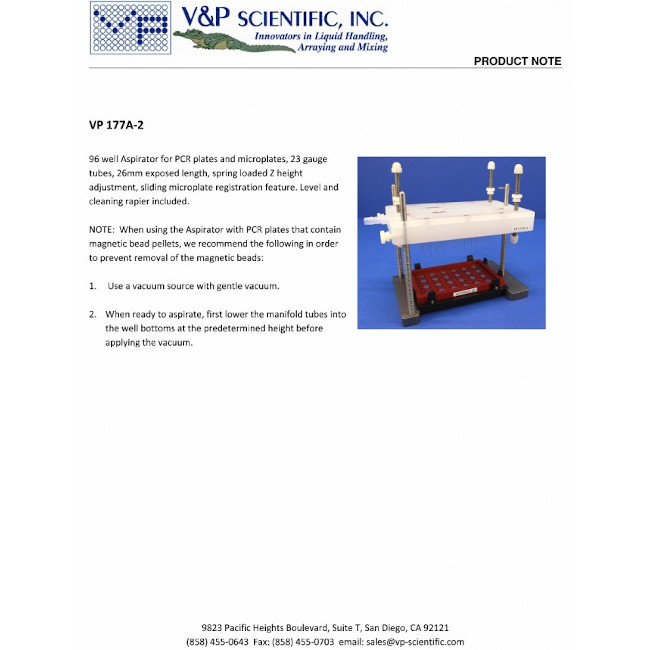

96 well Aspirator for PCR plates and microplates, 23 gauge tubes, 26mm exposed length, spring loaded Z height adjustment, sliding microplate registration feature. Level and cleaning rapier included.

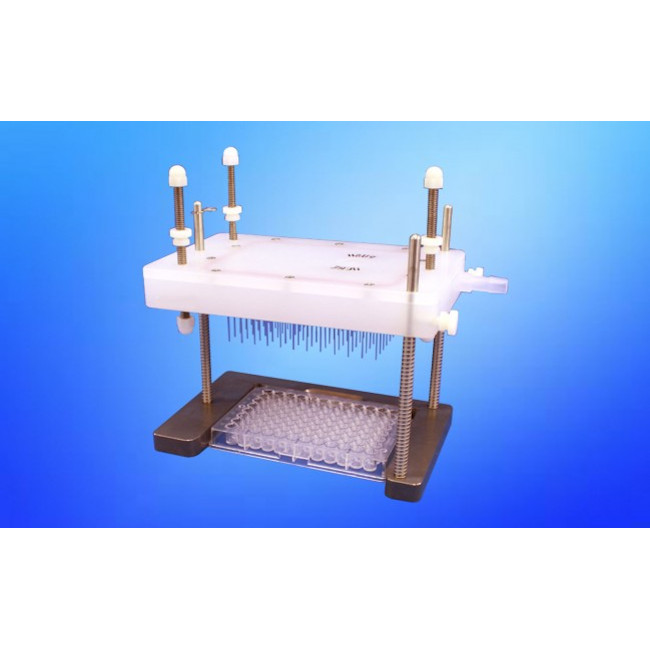

The VP 177A-2 is a side loading manifold with springs that hold the 96 tube manifold up while the microplate is slid in from the side. Once in place, the manifold is pressed down by hand and tubes aspirate the liquid from the microplate. The bottom position of the tubes is determined by the 3 stop adjustment bolts. The adjustment on these bolts can be precisely determined for critical applications such as setting the distance above a pellet. If you are aspirating above a pellet this is the system for you. The flexibility of setting the lower Z position is very useful. This system is much faster and easier (one hand operation) to operate. If you have many plates to aspirate this is the system of choice.
