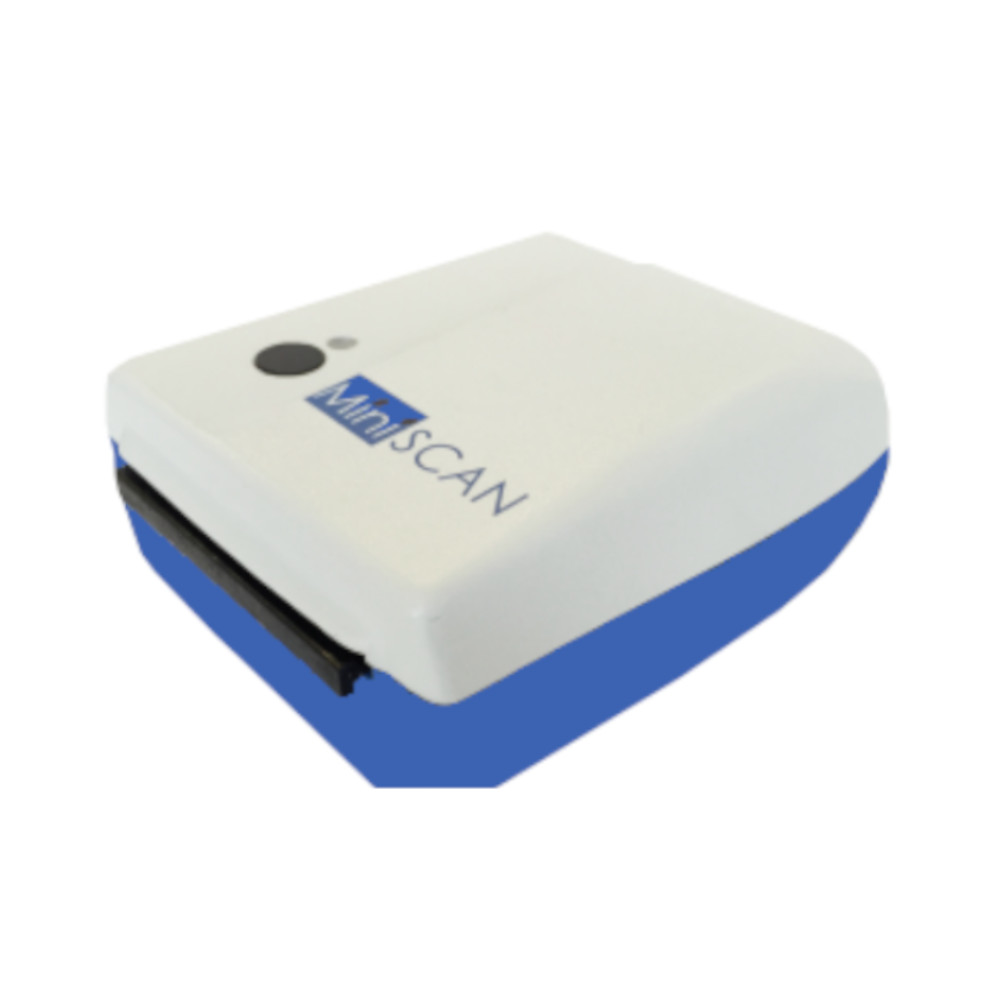

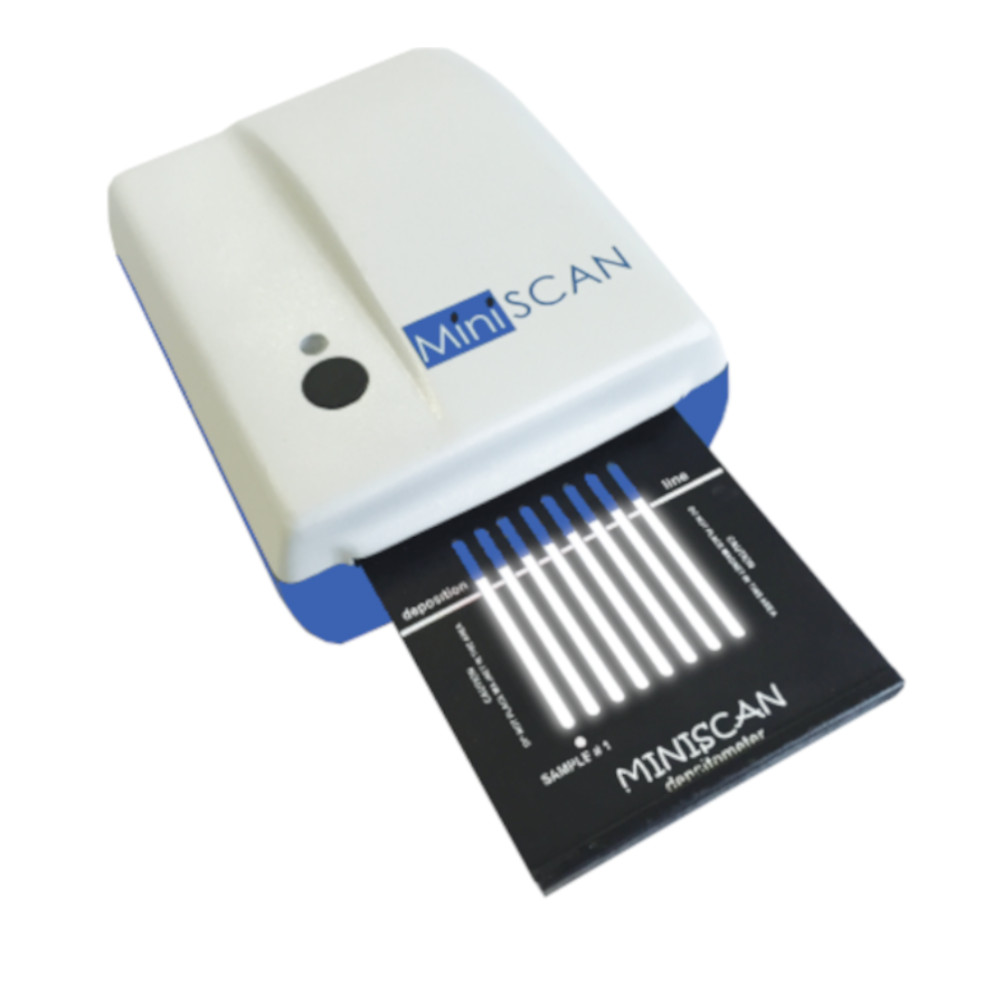

Automated Densitometer With 8 Reading Channels And Software
UK Support
- Allows densitometry of the electrophoretic patterns of the most widely used methods:Serum proteins, Hemoglobins, Lipoproteins, and Immunofixation.
- Scanning of clear and uncleared cellulose acetate strips.
- Scanning of agarose gel strips.
- Connection to PC via USB
- Personal Management and report printing.
SKU:
CSLMINISCAN
Technical Features
- LED light source and high gain phototransistor.
- Reading system in absorbance with self-regulation of the source brightness.
- Densitometry of cellulose acetate and agarose gel membranes.
- Reading of single lanes on the strip up to a maximum of 8 samples.
- Connection to PC via USB.
- External power Supply 24V.
- Dimensions:116 x 156 x 63mm (LPH).
Software Features
- Pre-programmed Analysis:Serum proteins, Hemoglobins, Lipoproteins.
- Possibility to define additional exams.
- Automatic Processing graphs electrophoretic pattern.
- Possibility of correction of graphs.
- Personal Management and report printing.
- Report header customization.
- Operating system:Microsoft Windows XP, Windows Vista, Windows 7, Windows 10 and Windows 11.
