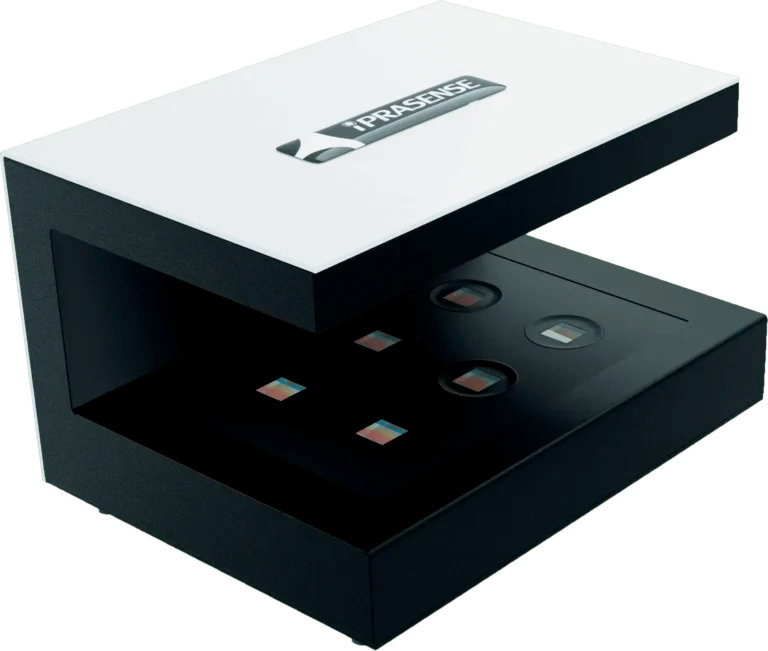

CYTONOTE 6W
Time-lapse images of cells and real time analysis from inside your incubator

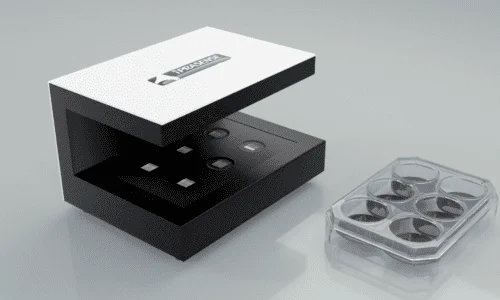

Specifically designed for easy parallel monitoring of 6 well plate cultures
The CYTONOTE 6W uses our patented lens-less imaging technology in a tiny device design to fit within any incubator. The CYTONOTE product range simplifies live cell imaging technique and transforms the complex and expensive microscope into a cost-effective solution.
The CYTONOTE 6W is the simplest live cell-imaging system designed for recording cell movies and analyzing a variety of cell culture from inside the incubator. The innovative and patented “lens-less imaging” technology pushes the boundaries of microscopy with its super wide field of view and its capability to capture and analyze precisely several thousands of cells without any focus and brightness settings.
Our Live Cell Imaging System, the CYTONOTE 6W has been designed to be compatible with all Petri dishes, T-Flask and slides. Select your container and place it on the CYTONOTE 6W. The default acquisition time between two measurements is 20 minutes. However, this time can be changed at your convenience and thus you can adapt the time periods for the realization of time-lapses of your cells.
As explained above, no adjustment of parameters such as focus or brightness is necessary. Our algorithm will reconstruct the cells wherever they are located in the container. These features make the CYTONOTE 6W robust to temperature variations, cell drop inside the Matrigel, or any other parameters that may affect the traditional focus adjustment.
Our Live Cell Imaging System, the CYTONOTE 6W works on an ultra-wide field of view where all data recovered from picture represent your cell culture. The image analysis and results from the CYTONOTE 6W are performed by the HORUS dedicated Software. HORUS is application oriented: it provides quantitative confluence determination, cell size or cell tracking. Full field image (30mm2) of the samples are stored and can be accessed and zoomed at any time.
- In direct from your incubator
- Time-Lapses & Movies
- High contrast
- lways in focus
- Settings free
- Huge field of view
- Robust
- Many cell culture application
Applications of our Live Cell Imaging System
- Real-Time Imaging of your cell culture
- Up to 6 cell cultures in parallel
- Time-Lapses and movies of your cells
- Confluence analysis
- Growth curves
- Migration test
- Proliferation test
- Cell morphology
- Cell population
- Cell attachment / detachment
- Cell tracking
Accessories & Consumables of our Live Cell Imaging System
- HORUS Software
- 21 CFR Part 11
- Scratch Assay Analysis module for HORUS
- Cell Tracking Analysis module for HORUS
- Cell Tube Formation Analysis module for HORUS
- CYTONOTE Cable (2 meters)
- Laptop Computer
- IQ/OQ
| Cells | Eucaryotic cells : Adherent monolayer, Suspension cell at bottom of culture ware or in micro-slides, 3D spheroids |
| Media | Liquid or Semi-solid (collagen) |
| Culture vessels | Standard plastic petri dish, culture flask, multiwell plate, max height 55mm |
| Resolution | 1 micron |
| Field of view | 30 mm² (6,5 mm x 6,5 mm) |
| Working distance | 0 to 5 mm |
| Image rate | 1,5 image/min |
| Light source | LED |
| Sensor | CMOS 10 Mpix |
| Image format |
|
| Enclosure | Stainless steel |
| Size | 17 * 13 * 10,5 cm |
| Weight | 2 kg |
| Power supply | USB |
| Pharmaceutical industries |
|
