Gel Dryer Pump
UK Support
- 9 mBar Ultimate Vacuum
- 10mm hose nozzle
- 35 l/min flow rate

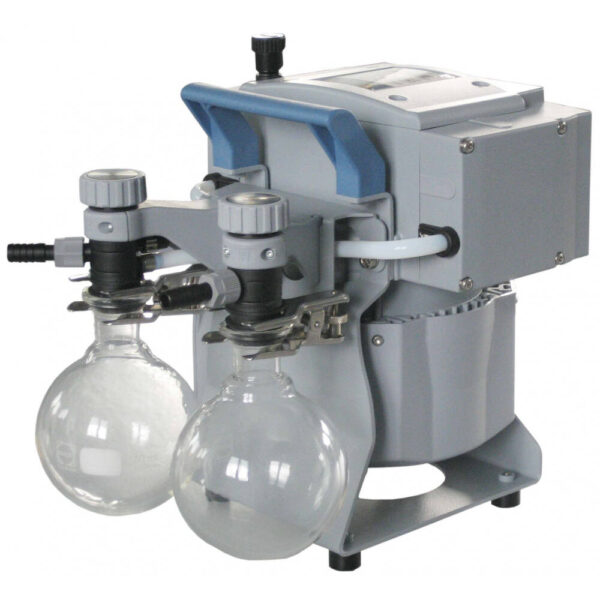

The Vacuubrand MZ 2C 2 AK is a quiet, low maintenance oil free vacuum pump, which generates the lowest pressure measurable reproducibly at room temperature for almost 100% efficient solvent recovery. Two round bottomed flasks collect and condense noxious gases released during gel drying, whereas inlet and outlet separators act in tandem with the diaphragm pump to facilitate controlled collection of vapours without risk of condensate entering and contaminating the pump. The pump also benefits from a compact design and construction from specially-selected chemically resistant materials, long-life easy-to-change diaphragms and valves, and gas ballast function.
| SKU | CSL-GDPUMP | CSL-GDPUMP$ |
|---|---|---|
| Unit Dimensions (cm) | 24.1 x 34.5 x 32.6 | 24.1 x 34.5 x 32.6 |
| Weight (Kg) | 11.9 | 11.9 |
| Inlet Connection (IN) | Hose nozzle NW 10mm | Hose nozzle NW 10mm |
| Outlet Connection (EX) | Hose nozzle NW 10mm | Hose nozzle NW 10mm |
| Vacuum Pump Type | Chemistry Diaphragm Pump | Chemistry Diaphragm Pump |
| Number of Stages | 2 | 2 |
| Pumping Speed | 1.9m3/h / 2.1 m3/h / 1.2cfm | 1.9m3/h / 2.1 m3/h / 1.2cfm |
| Ultimate Vacuum (total) | 9 mbar / 6.8 Torr | 9 mbar / 6.8 Torr |
| Ultimate Vacuum with Gas Ballast | 15 mbar / 11 Torr | 15 mbar / 11 Torr |
| Pump Flow Rate | 35 l/min | 35 l/min |
| Input Voltage | 230V | 110V |
