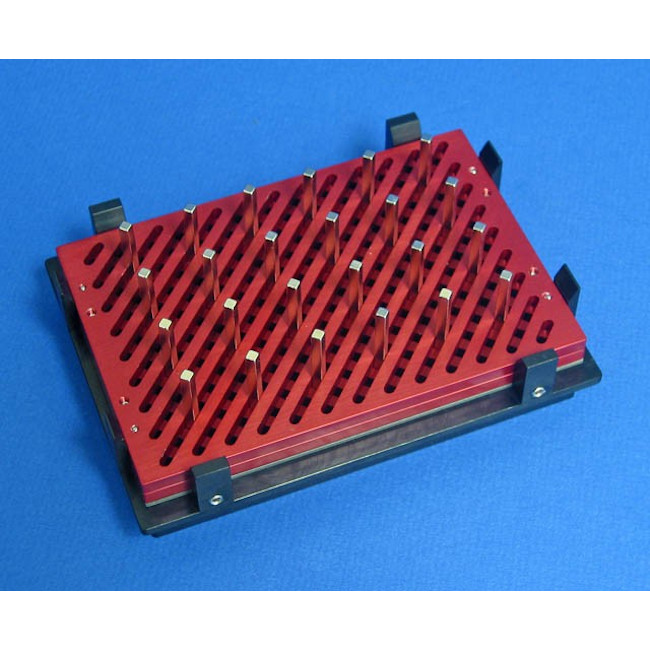

Magnetic Separation Plate for 96 Deep Well with Open Architecture Microplates, 24 Magnetic (52 MGO) Rectangles, Vertical Magnetic Field, Aluminum Frame, SLAS Footprint, High Profile Registration Base Included
Magnetic Bead Separation Block for 96 deep well microplates, 24 tall square post magnets, vertical magnetic pull, red anodized aluminum magnet frame, SBS footprint, includes high profile Registration Base VP 771G-4RM-1. Each.
Compatible Microplates*
Costar 0.5ml DW Cat (3956, 3957)
Nunc 1ml DW Cat (260251, 260252)
Polyfiltronics 1ml DW
Costar 1ml DW Cat (3958, 3959)
Greiner 1ml DW Cat (780201, 780261)
Matrix 1ml DW Cat (4211, 4212)
Eppendorf 1ml DW Cat (Deepwell 96/1000ul)
Ritter RiPlate 1ml DW
Nunc 2ml DW Cat (278743, 278752)
*Please note that this list is not comprehensive. The list consists of a limited amount of microplates that have been tested. It is possible that another plate not on this list is compatible. Please contact our sales team for more info.
| Mode of Use | For Benchtop Use |
|---|---|
| Format | 96 |
| Container To Be Used | Microplates |
| Well Bottom Shape | Flat Bottom |
| Plate Type | Deep Well |
| Materials - Attributes | Frame - Anodized Aluminum |
| Number of Magnets | 24 Cylinders |
| MGO - Attribute | 52 |
| Magnet Type - Attribute | Neodymium (NdFeB) |
| Includes Registration Base | Yes. |
| SLAS Dimensions | Yes. |
| Bead Pellet Location | 1 Corner/Side |
| Magnetic Orientation | Axial, North Poles Up |
| Robot Gripper Access | No. |
