| Cat. No. | CSFS-06 |
| Control unit | Control panel | 8" Color touch-screen interface |
| Communication port | Remote software control through Ethernet, up to 16 systems per PC |
| Data export through USB port |
| Analog AUX port for system extension |
| Program storage | Up to 59,994 process programs |
| Log data storage | Up to 100 process monitoring data files |
| Cabinet material | ABS front panel and painted iron housing |

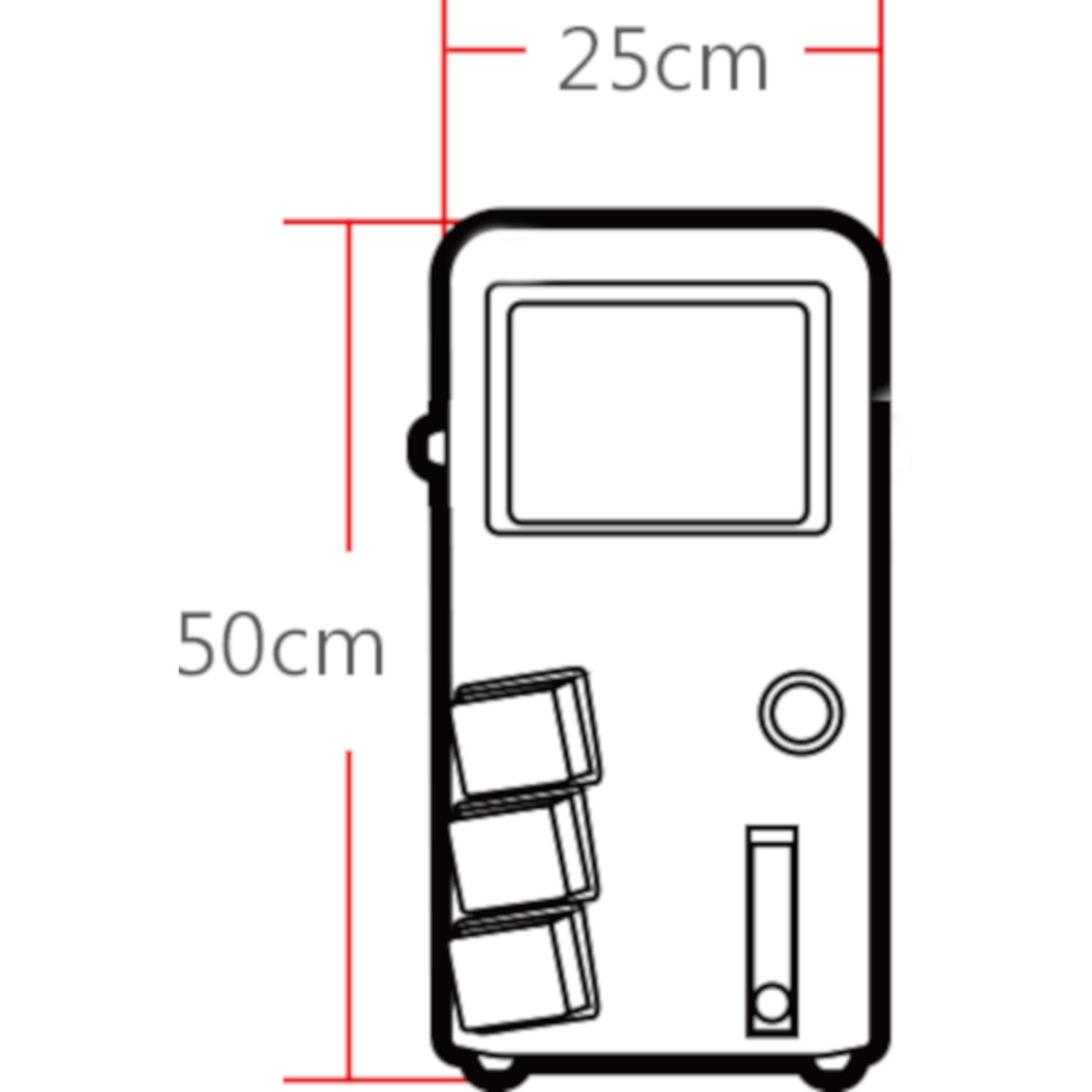

| Dimension | Footprint: W x D = 9.84" x 20.08" (250mm x 510mm), Height: 19.69" (500mm) |
| Rated voltage | 110V~/220V; 50/60 Hz, 10A |
| Aeration | Inlet gas flow-meter | 0,0.1-1LPM (0.5L), 0, 0.2-2.5LPM (1L), 0, 1-10LPM (3, 5L), 0, 2-25LPM (10L) |
| Sparger | Orifice ring |
| Baffle | Removable 316L stainless steel baffles |
| Temperature | Heating | 1. Thermostat System: built-in heat exchanger (550W heater, water circulation pump) |
| 2. Dry heating system (heating blanket or heating base unit) |
| Cooling | Cooling coil and solenoid valve |
| Range | with FS-V-A / B / C series : 5°C (41°F) above coolant up to 60°C (140°F);with FS-V-D series :5°C(41°F) above coolant up to 90°C (194°F) |
| Probe | Platinum RTD probe (PT-100), non autoclavable |
| Control mode | Manual or Programmable 15 steps PID control |
| Agitation | Drive | Removable top brushless motor |
| Speed range | a. For extremely shear-sensitive cell line: 30 - 300rpm b. For fermentation and cell culture: 30 - 1200rpm (0.5 - 5L) and 30 - 1000rpm (10L) |
| Resolution | 1 rpm increment |
| Impeller | 2 impellers for 0.5-1L vessel and double jacketed vessels 3 impellers for 3L vessel and above Note: Customized impellers are available upon ordering |
| Control mode | Manual or Programmable 15 steps PID control |
| pH | Range | 2 - 14pH |
| Resolution | 0.01pH |
| Probe | Gel-filled electrode, autoclavable |
| Control mode | Manual/Acid start/programmable 15 steps PID control with adjustable deadband,**pH stat with smart feeding technology |
| DO | Range | 0 - 200% |
| Resolution | 0.1% |
| Probe | Polarographic DO sensor; autoclavable |
| Control mode | 1-stage DO cascade responsea. Increase or decrease agitation speed **b. Supply external oxygen source using solenoid valve switch (Oxygen enrichment module required, optional device) **c. Adjusting DO level using accurate gas mixing control (Gas mixing station module required, optional device)**DO stat with smart feeding technology |
| ORP(optional) | Measurement range | -/ 2000mV |
| Resolution | 1mV |
| Probe | Gel-filled electrode: autoclavable |
| Foam / Level | Probe | 316L stainless steel protector with insulated PTFE tube, autoclavable, adjustable sensitivity control |
| Control Mode | Foam: On/Off switchLevel: On/Off switch control with wet/dry probe set up |
| Peristaltic Pump | Pump number | 3 x built-in Watson Marlow pumps, **1-2 external pump extendable (MU-D series required, optional) |
| Motor type | Precise stepping motor; minimum speed is 1rpm |
| Speed range | 0 to 65rpm |
| Resolution | 1rpm |
| Control mode | Manual or Programmable 15 steps feeding control; pump can be assigned for Acid, Base, Antifoam and Substrate; **flow rate & total volume calculation |
| Exhaust | Device type | 316L stainless steel condenser |
