TOUCH SCREEN POWER Pro 300V 700mA 150W – 110/230V
- Perfect for routine electrophoresis applications.
- 300V, 700mA, 150W touch screen power supply.
- 4.3-inch full-color touchscreen.
- 5 pairs of outlets for multiple gel tanks.

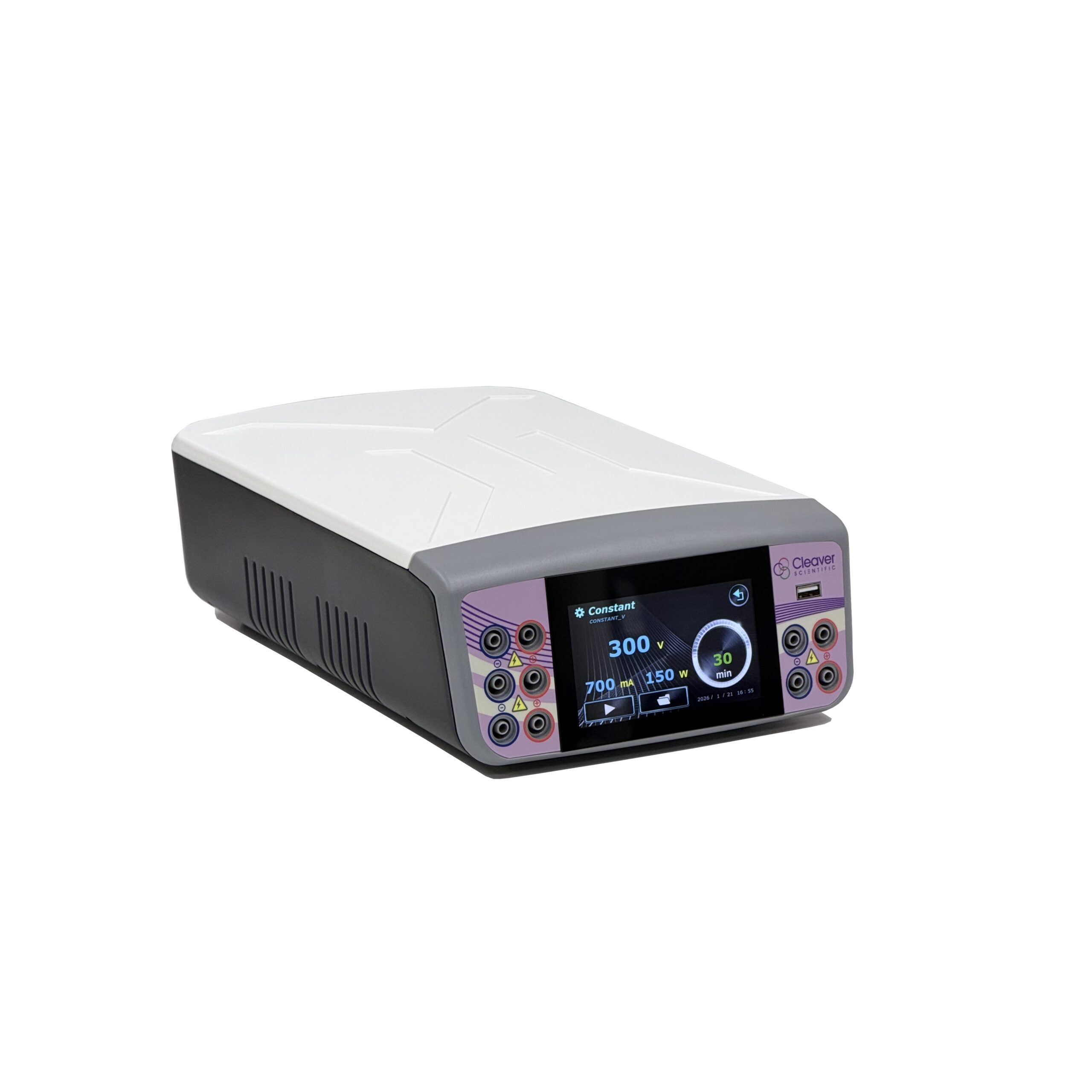

The PowerPro300-M2 touch screen power supply is a versatile, multi-functional unit designed for a wide range of electrophoresis applications and is among the most advanced power supplies available on the market featuring advanced functionality, including a 4.3″ color touchscreen.
At 300V, 700mA, and 150W, the PowerPro300-M2 delivers nearly twice the current and power of the market-leading equivalent unit. It is perfectly suited for use with Cleaver Scientific’s multiSUB range of horizontal electrophoresis systems and omniPAGE Mini vertical electrophoresis systems.
The PowerPro300-M2 features built-in pre-set protocols for running each of Cleaver Scientific’s electrophoresis systems and allows users to create and save protocols for their own systems with the ability to export the last run report through a USB port.

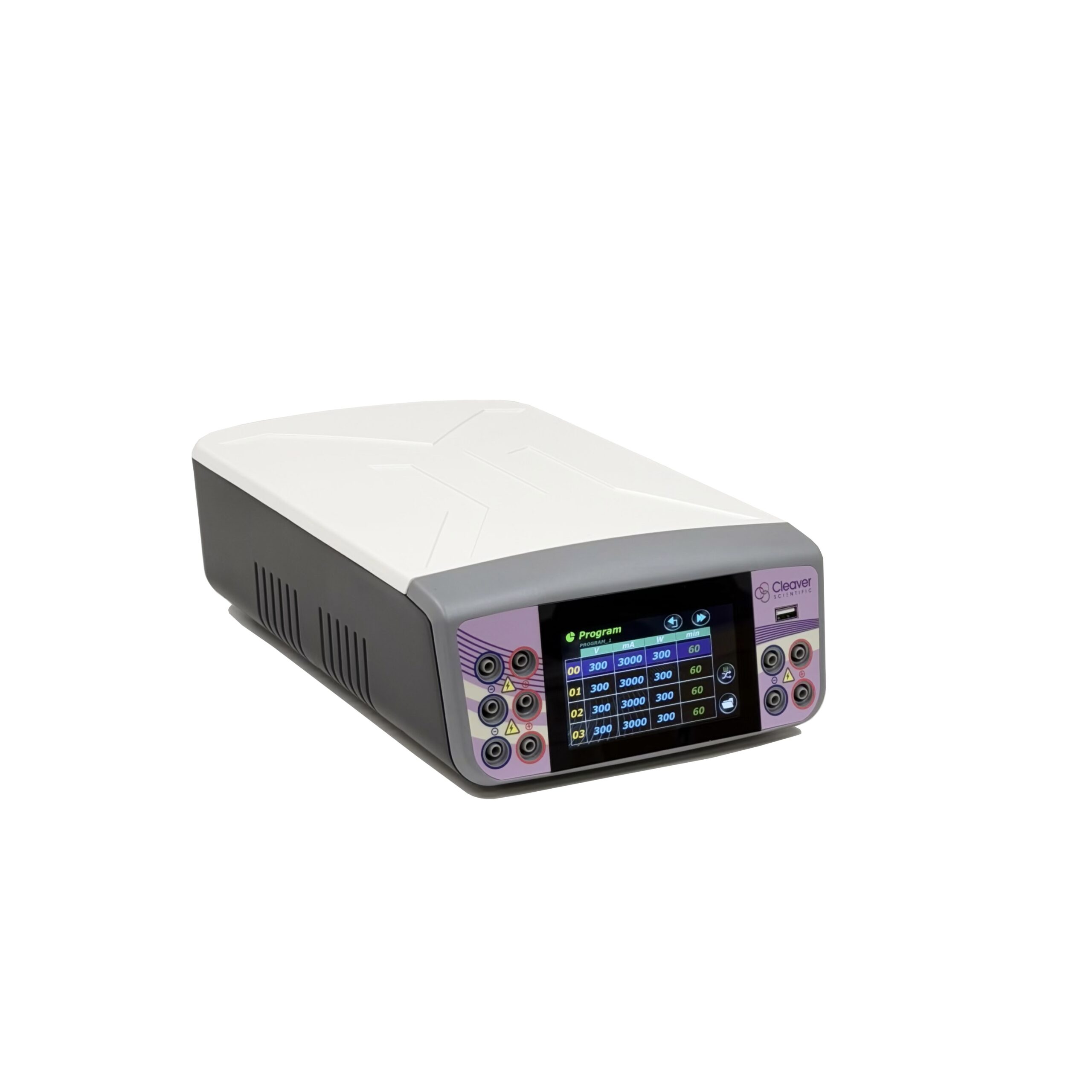

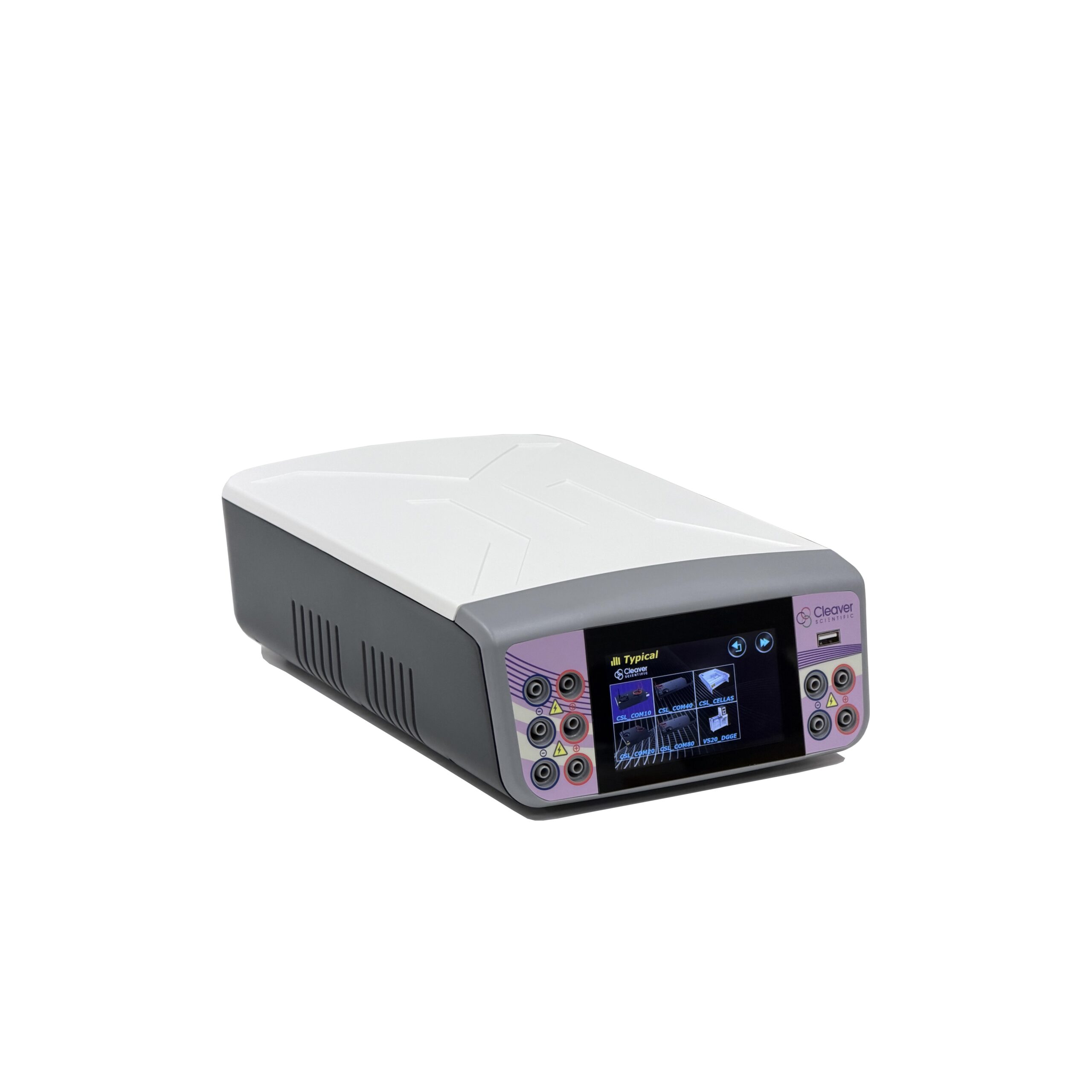

A touch screen displays current running parameters and enables easy browsing of pre-set and saved protocols.
The PowerPro300-M2 can be operated at constant voltage, constant current, or constant power and can store up to 100 programmes with up to 30 steps each. A convenient pause/resume function allows any run to be temporarily halted for gel inspection and restarted from the same position.
The PowerPro300-M2 touch screen power supply is the ideal choice for:
- Routine horizontal electrophoresis using multiSUB Mini, Midi, and Choice
- Vertical electrophoresis using omniPAGE Mini

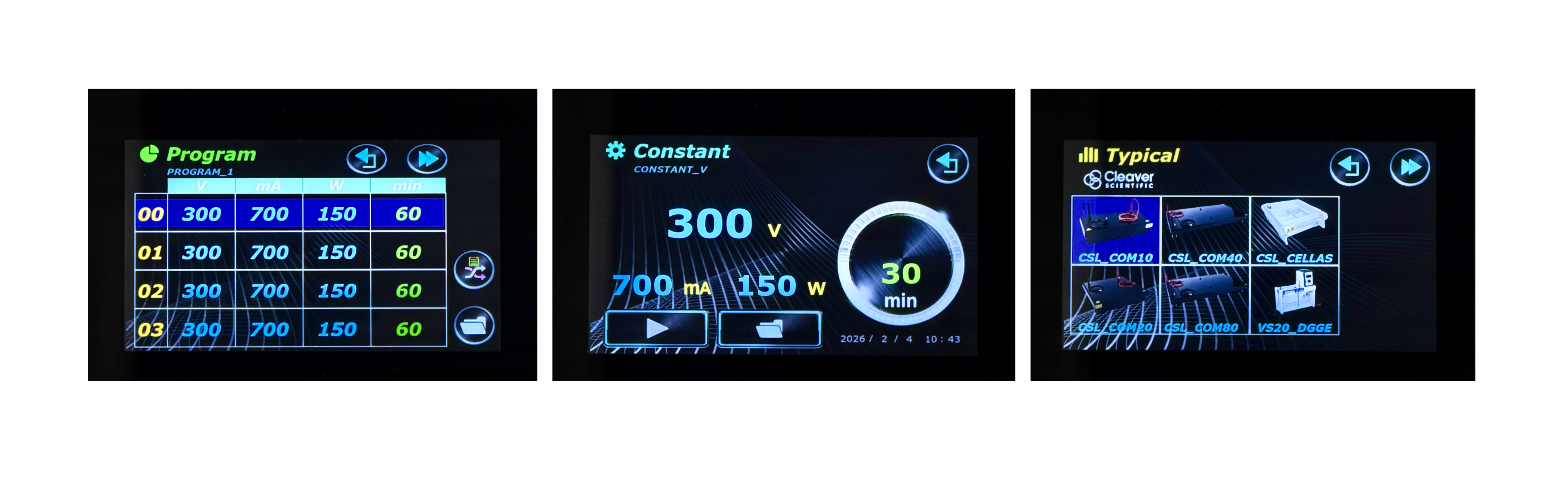

Note: The touch screen display shown is for illustration purposes only. Screen layout, displayed parameters, and available functions may vary depending on the specific power supply model, voltage range, and product configuration.
| Unit Dimensions (cm) | 21.5 x 33.5 x 10.4 |
|---|---|
| Weight (Kg) | 2.1 |
| Construction | PC housing, ABS faceplate |
| Timer | 1. Constant: 9999 (min) with alarm / continuous 2. Program: 999 (min) with alarm / continuous |
| Resolution | 1V, 1mA |
| Input Voltage | 100-240V; 47-60Hz, 200W |
| Operating Temperature | 4℃~ 40℃ |
| Operating environment | ≤95% RH |
| Display | 4.3” Colorful Touch Screen |
| Controller | Microprocessor |
| Safety Features | Shrouded plugs and sockets |
| Compliance Marks | CE, ETL |
| Maximum Voltage (V) | 300 |
| Maximum Current (mA) | 700 |
| Maximum Power (W) | 150 |
| Number of Output Pairs | 5 |
| Operating Modes | Constant Parameter, Programmable 30 Step Programme. Pre-programmed settings |
| Program Storage | 100 programmed files |
| Program Multi-Step | Up to 30 steps |
| Type of Output | 1. Voltage or Current with automatic crossover 2. When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run (later could be changed by user) |
| USB port | For exported last run report |
| For exported last run report | Yes, last running data |
| Output Diameter (mm) | 4 |
| No Load Detection | Yes |
| Overload Detection | Yes |
| Ground Leakage Detection | Yes |
| Over Temperature Protection | Yes |
