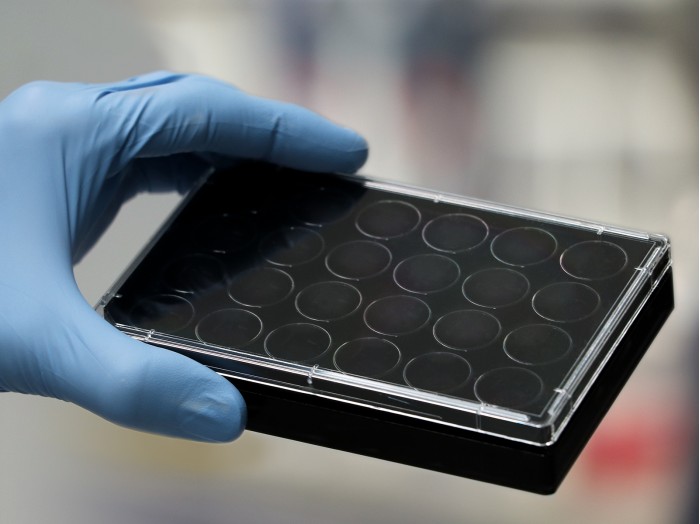

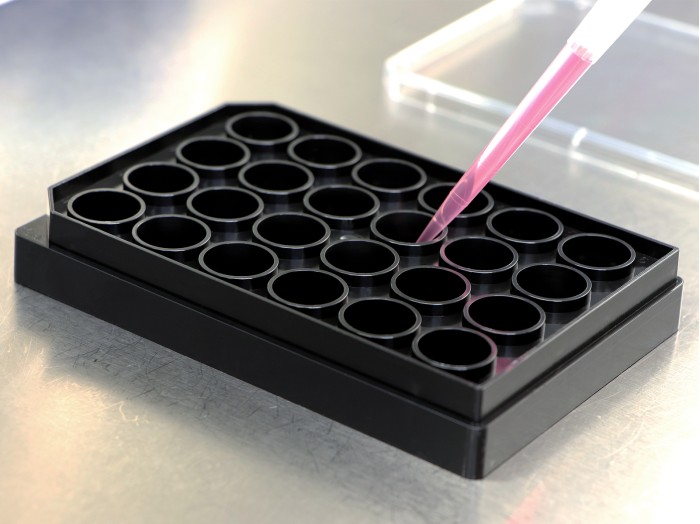

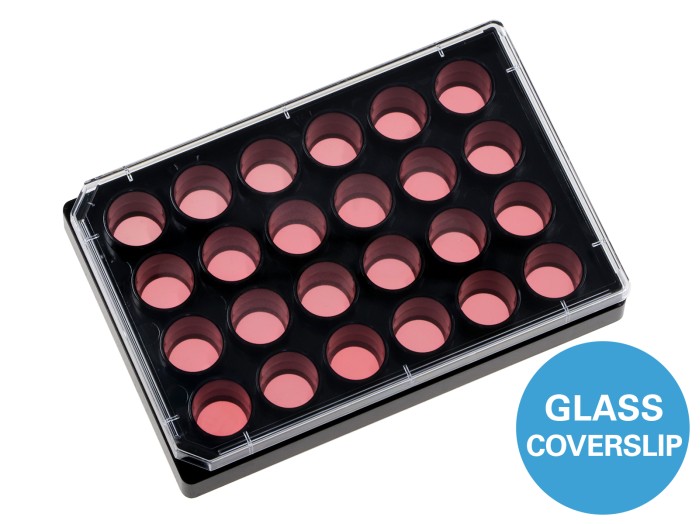

µ-Plate 24 Well Glass Bottom
Bulk Packs
- A microplate ideal for screening and cell cultivation applications
- Brilliant cell imaging due to the low thickness variability of the #1.5H glass coverslip, excellent inner well, and whole plate flatness
- Black walls provide low well-to-well crosstalk advantages for fluorescence microscopy
Applications
- Cultivation, high throughput screening (HTS), and high-resolution microscopy of cells
- Widefield fluorescence imaging and confocal microscopy of living and fixed cells
- Compound screenings (toxicology)
- Large-scale transfection experiments
- Live cell imaging, also suited for extended periods
- Total internal reflection fluorescence (TIRF) and single molecule applications
- Super-resolution microscopy (STED, SIM, (F)PALM, (d)STORM) and fluorescence correlation spectroscopy (FCS)
- Immunofluorescence staining
Technical Features
- Standard format, compatible with robotics and plate readers due to an ANSI/SLAS (SBS) standard format (85.5 x 127.5 mm)
- 24 wells with standard numbering (letters A–D and numbers 1–6)
- Suitable for fluorescence scanners
- Bottom made from D 263 M Schott glass with a thickness of 170 µm +/- 5 µm
- May require coating to promote cell attachment
- No autofluorescence
- Excellent inner well flatness and whole plate flatness
- Compatible with staining and fixation solvents
- Sterile with single packaging
- Also available as µ-Plate 24 Well with a #1.5 ibidi Polymer Coverslip Bottom for optimized cell adhesion—for everyday use with diverse application possibilities
The Principle of the µ-Plate 24 Well Glass Bottom
The Coverslip Bottom
The µ-Plate 24 Well Glass Bottom comes with a high precision D263 M Schott glass, No 1.5H (170 +/– 5 µm) Glass Coverslip bottom. This bottom is ideally suitable for high-resolution microscopy and special microscopic applications like TIRF or super-resolution.
| Length / width | 127.5 / 85.5 mm |
| Height with / without lid | 22.4 / 20.0 mm |
| Well-to-well distance | 18.9 mm |
| Well clearance | 0.76 mm |
| Single well diameter | 14.0 mm |
| Single well depth | 19.0 mm |
| Volume per well | 1 ml |
| Growth area per well | 1.54 cm2 |
| Coating area per well using 1 ml | 4.4 cm2 |
| Bottom: Glass Coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm | |
Instructions
Variant
Pack/Size
Price
Qty
µ-Plate 24 Well Glass Bottom, Bulk Box 90: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
90 / Pack
£3,412.84 ex. VAT
µ-Plate 24 Well Glass Bottom: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
15 / Pack
£669.18 ex. VAT
