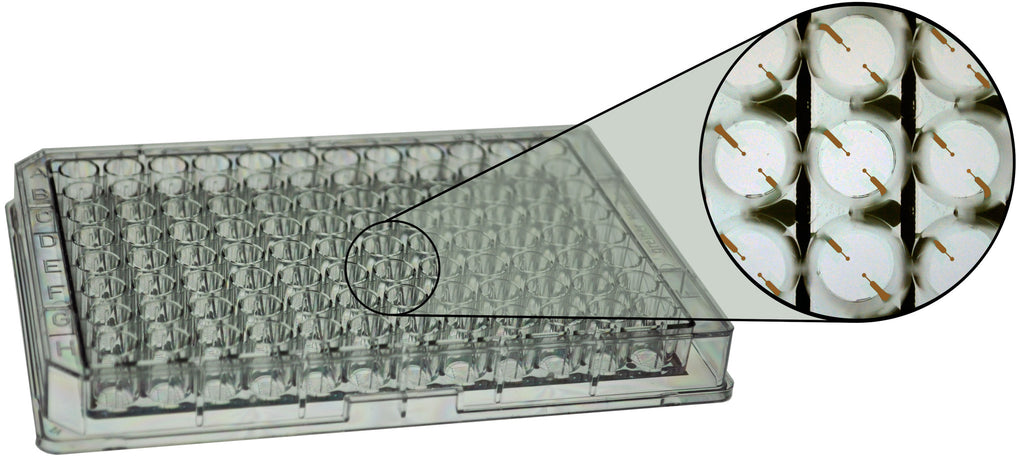

ECIS 96 Well micro titer plate with 2 circular electrodes (0.256 sqr.mm total area) per well. PET substrate

PET Version Array: Polyethylene terephthalate, standard thickness 0.25mm

Each of the 96 wells in a standard plate configuration contains two circular 350 μm diameter active electrodes on a transparent PET substrate (measuring from 100-200 cells). As with other 1E arrays, a major use of this array is for the ECIS wound-healing assays where the  small electrodes assures the high current pulse will result in complete cell killing.

Only a small population of cells is monitored on the small electrodes resulting in a fluctuating impedance signal due to the random like movement of the cells (micromotion).

Applications include:

• Cell Migration

• Measurement of micromotion

• Cell-ECM protein interactions

• Signal transduction assays

• Detection of invasion of endothelial cell layers by metastatic cells

• Barrier function

• In situ Cell Electroporation and Monitoring
