µ-Slide III 3D Perfusion
Bulk Packs
- Ideal for the long-term cultivation of cells in 3D matrices with an optimal nutrients supply
- Easy handling: Samples can be placed into the open wells–perfusion can be applied after closing the wells
- Excellent optical-quality imaging chamber for high-end microscopy

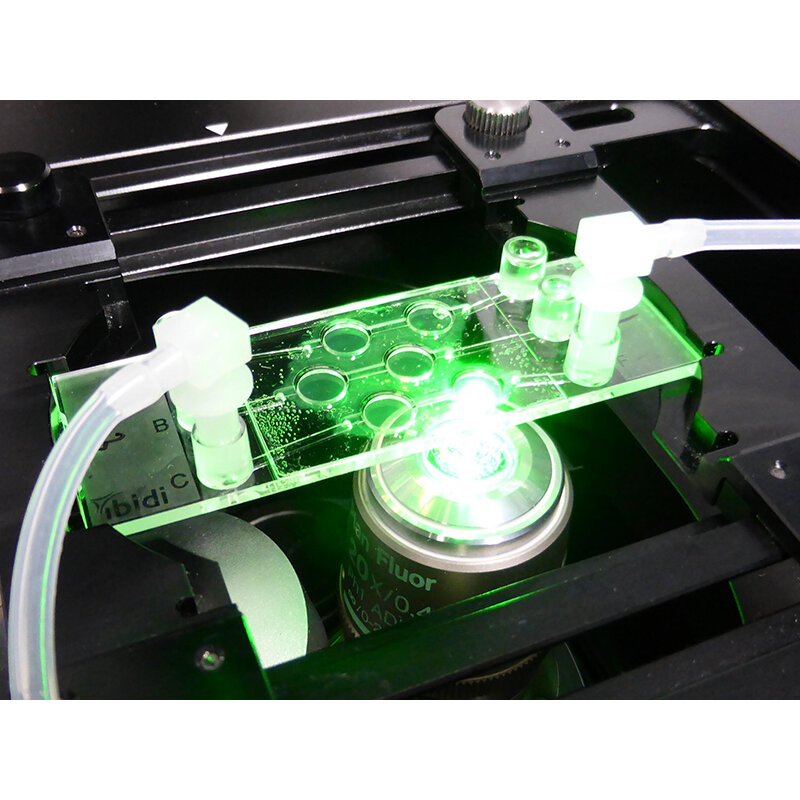

A three channel µ-Slide used for the cultivation and perfusion of 3D cell structures
- Ideal for the long-term cultivation of cells in 3D matrices with an optimal nutrients supply
- Easy handling: Samples can be placed into the open wells–perfusion can be applied after closing the wells
- Excellent optical-quality imaging chamber for high-end microscopy
Applications
- Observation of single cells in 3D matrices or tissue samples (e.g., spheroids, small organoids, or organisms)
- Perfusion of samples
- Long-term cultivation of cells in 3D matrices
Technical Features
- Open wells are filled and later closed for the perfusion of the sample
- Channels allow for easy fluid connection of the wells
- Luer adapters for easy pump connection (e.g., to the ibidi Pump System)
- Optimal nutrients supply into 3D structures
- Observe the sample through the polymer coverslip bottom using high resolution light microscopy
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Number of wells | 6 |
| Volume of wells | 30 µl |
| Well diameter | 5.5 mm |
| Well height (without channel) | 1.2 mm |
| Well height (with channel) | 1.7 mm |
| Growth area per well | 25 mm2 |
| Number of channels | 3 |
| Total channel volume | 130 µl |
| Channel width | 1.0 mm |
| Adapters | Female Luer |
| Volume per reservoir | 60 µl |
| Coating area using 130 µl | 2.4 cm2 per channel |
| Top cover matches coverslip | No. 1.5 |
| Bottom | ibidi Polymer Coverslip |
Variant
Pack/Size
Price
Qty
µ-Slide III 3D Perfusion Uncoated: #1.5 polymer coverslip, hydrophobic, sterilized
15 / Pack
£477.79
µ-Slide III 3D Perfusion ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
15 / Pack
£477.79
µ-Slide III 3D Perfusion Untreated, Bulk Box 120: #1.5 polymer coverslip, hydrophobic, sterilized, 8 per tray, 15 trays
120 / Pack
£3,102.77
µ-Slide III 3D Perfusion Untreated, Bulk Box 90: #1.5 polymer coverslip, hydrophobic, sterilized, individually packed
90 / Pack
£2,472.52
µ-Slide III 3D Perfusion ibiTreat, Bulk Box 120: #1.5 polymer coverslip, tissue culture-treated, sterilized, 8 per tray, 15 trays
120 / Pack
£3,102.77
µ-Slide III 3D Perfusion ibiTreat, Bulk Box 90: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
90 / Pack
£2,472.52
