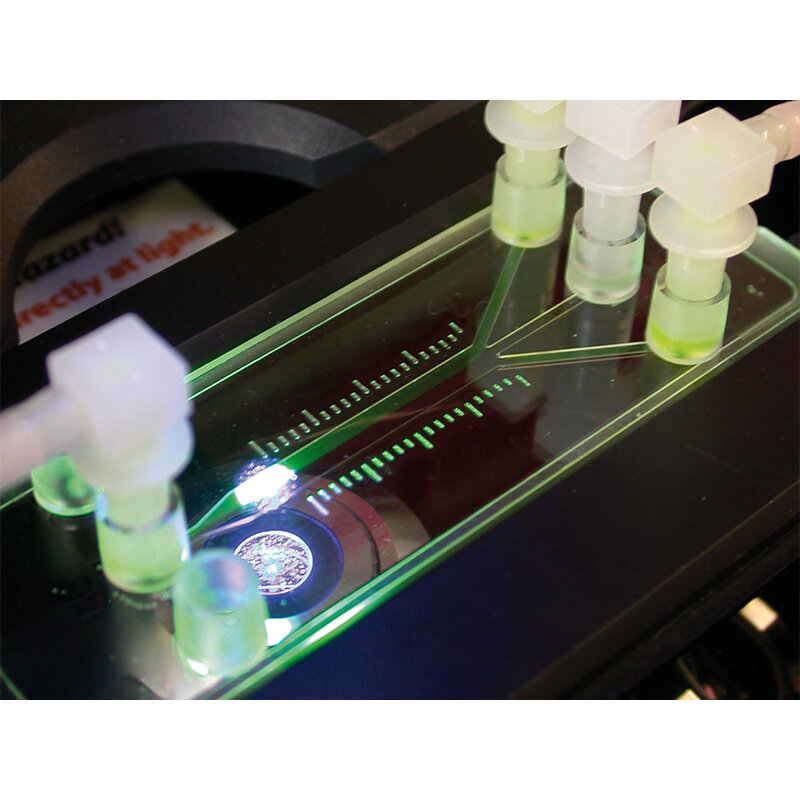

µ-Slide III 3in1
A μ-Slide for switchable chemotactic gradients that merges 3 separated liquids into one channel
- Dynamic fluidic gradients with a maximum time resolution
- Alternating gradient fields for chemotactic cell trapping
Applications
- Fluidic assays with up to three different liquids
- Cell sorting with laser traps
- Fluidic focusing of inner lane
Technical Features
- 3 channels ending in 1
- Microfluidic bi-directional gradient generator
- Fully compatible with the ibidi Pump System and other pumps
- The flow is always laminar
- Contains a millimeter scale bar
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Adapters | Female Luer |
| Volume per reservoir | 60 µl |
| Total channel volume | 60 µl |
| Height of all channels | 0.4 mm |
| Width of channels thin/thick | 1/3 mm |
| Total growth area | 1.23 cm² |
| Coating area | 3.05 cm² |
| Distance of scale bars | 1 mm |
| Bottom: ibidi Polymer Coverslip |
Variant
Pack/Size
Price
Qty
µ-Slide III 3in1 ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
15 / Pack
£358.76 ex. VAT
µ-Slide III 3in1 Uncoated: #1.5 polymer coverslip, hydrophobic, sterilized
15 / Pack
£358.76 ex. VAT
µ-Slide III 3in1 ibiTreat, Bulk Box 120: #1.5 polymer coverslip, tissue culture-treated, sterilized, 8 per tray, 15 trays
120 / Pack
£2,329.80 ex. VAT
µ-Slide III 3in1 ibiTreat, Bulk Box 90: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
90 / Pack
£1,856.56 ex. VAT
µ-Slide III 3in1 Untreated, Bulk Box 120: #1.5 polymer coverslip, hydrophobic, sterilized, 8 per tray, 15 trays
120 / Pack
£2,329.80 ex. VAT
µ-Slide III 3in1 Untreated, Bulk Box 90: #1.5 polymer coverslip, hydrophobic, sterilized, individually packed
90 / Pack
£1,856.56 ex. VAT
